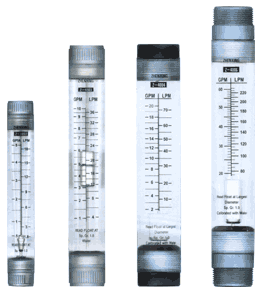

| Z-400型系列管道流量计 |
|
编 号: LL103400
|
|
|
型号 |
量程GPM |
量程LPM |
材质 |
连接方式 |
精度% |
|
Z-4001 |
0.2-2 |
1-7 |
#316 |
G1/2"内 |
4 |
|
Z-4002 |
0.5-5 |
1.8-18 |
#316 |
G1/2"内 |
4 |
|
Z-4003 |
1-10 |
4-36 |
#316 |
G3/4"内 |
4 |
|
Z-4004 |
2-20 |
10-70 |
#316 |
G1"内 |
4 |
|
Z-4005 |
5-30 |
20-100 |
#316 |
G1"内 |
4 |
|
Z-4006 |
20-60 |
8-220 |
#316 |
G1/2"内 |
4 |
|
Z-4007 |
20-100 |
75-400 |
#316 |
G2"内 |
4 |
|
Z-4008 |
50-150 |
150-600 |
#316 |
G2"内 |
4 |
|
Z-4009 |
60-200 |
200-800 |
#316 |
G2"内 |
4 |
|
型号 |
Z-4001 |
Z-4002 |
Z-4003 |
Z-4004 |
Z-4005 |
Z-4006 |
|
A |
210 |
210 |
278 |
265 |
265 |
306 |
|
B |
32 |
32 |
45 |
51 |
51 |
51 |
|
C -- 接口 |
D -- “0”型圈 |
E -- 止当圈 |
|
F -- 浮子 |
G -- 导杆 |
H -- 主体 | |
| |
|
 |
|
|
| |
|
|
